Motor, Hot-Scott

SKU: 1712
Regular price $496.88
/

Only -3 items in stock!

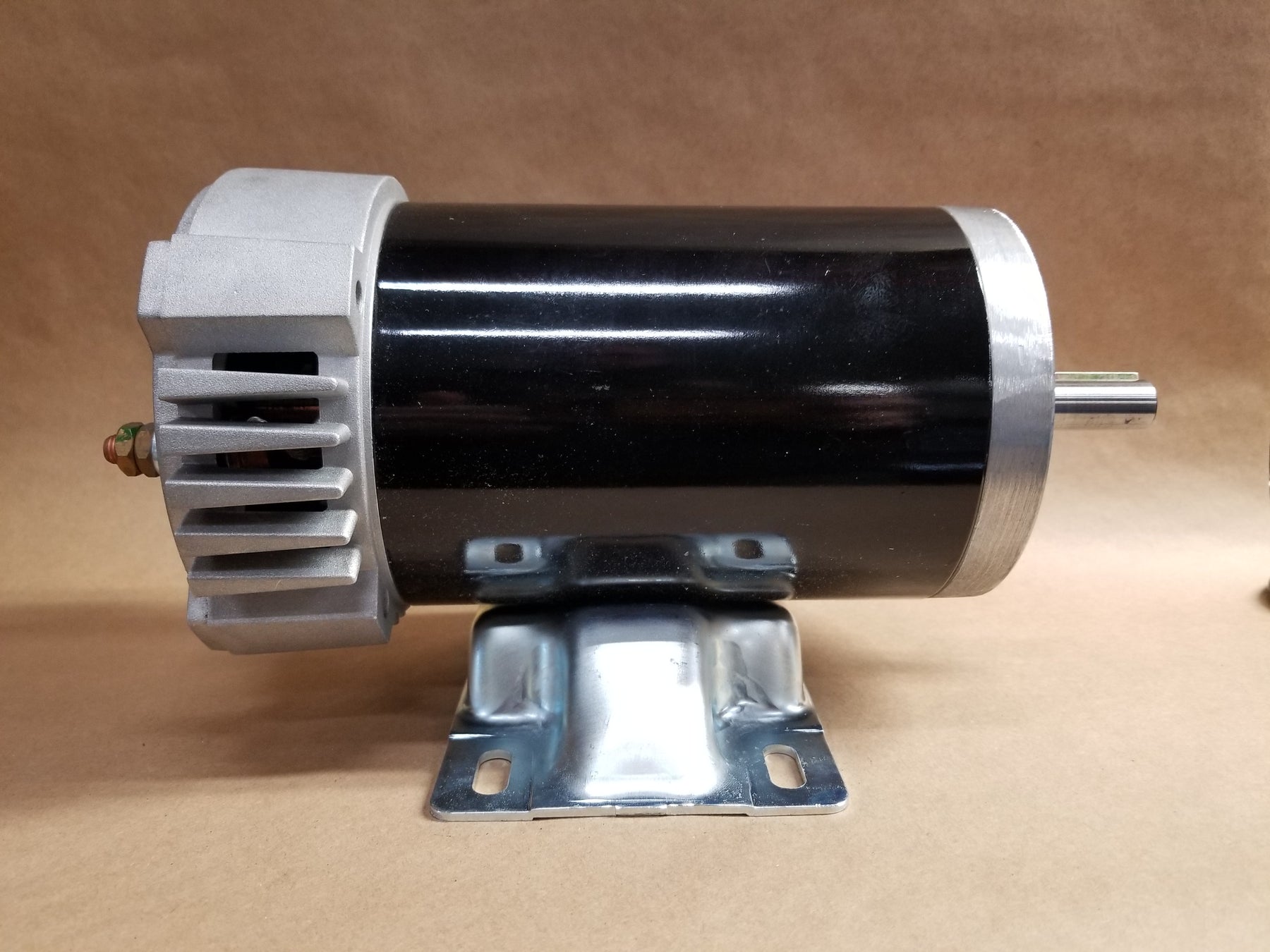

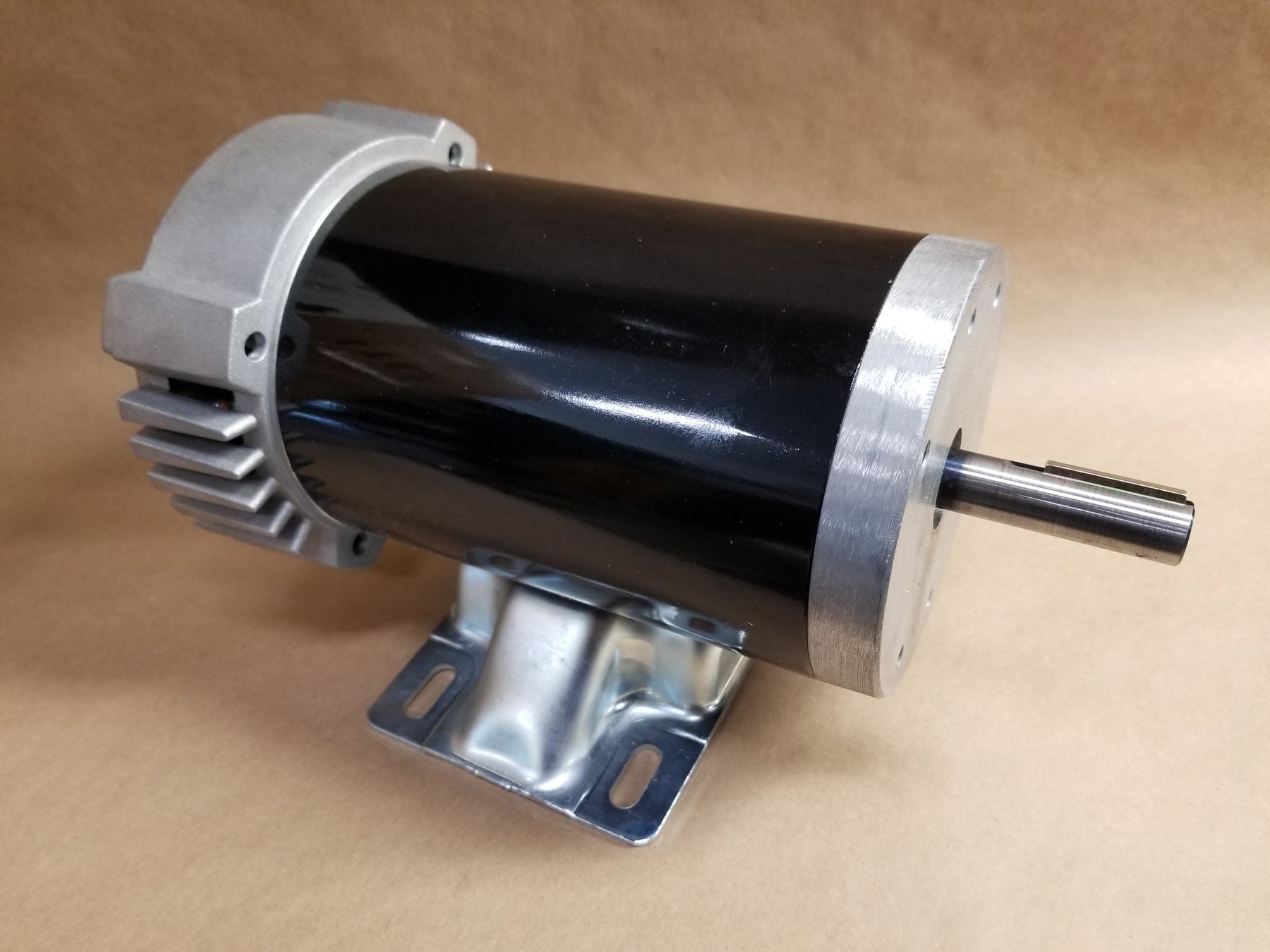

This factory-assembled permanent magnet DC motor is produced exclusively for SHIFT EV and features many upgraded components including a ventilated case, high-performance brushes, and more.

The unique combination of parts results in a compact and *cool-running motor specifically for the demands of properly geared Electrathon and similar "efficiency competition" vehicles.

  • >1.6 HP (continuous)
  • Peak HP (unknown, not  rated)
  • Input: 24-48V
  • 2800RPM (@ 24V)
  • Weight: 20.6 lbs

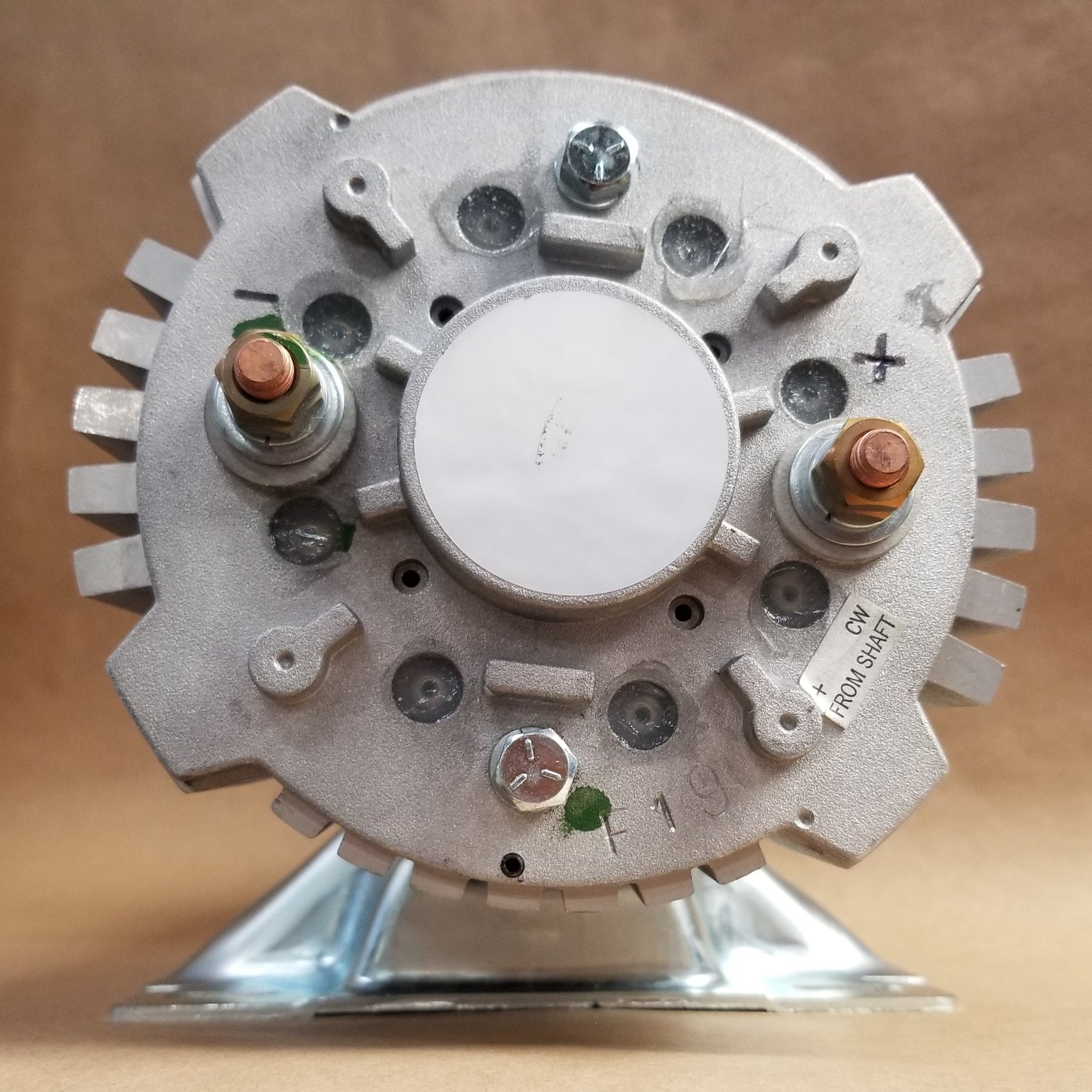

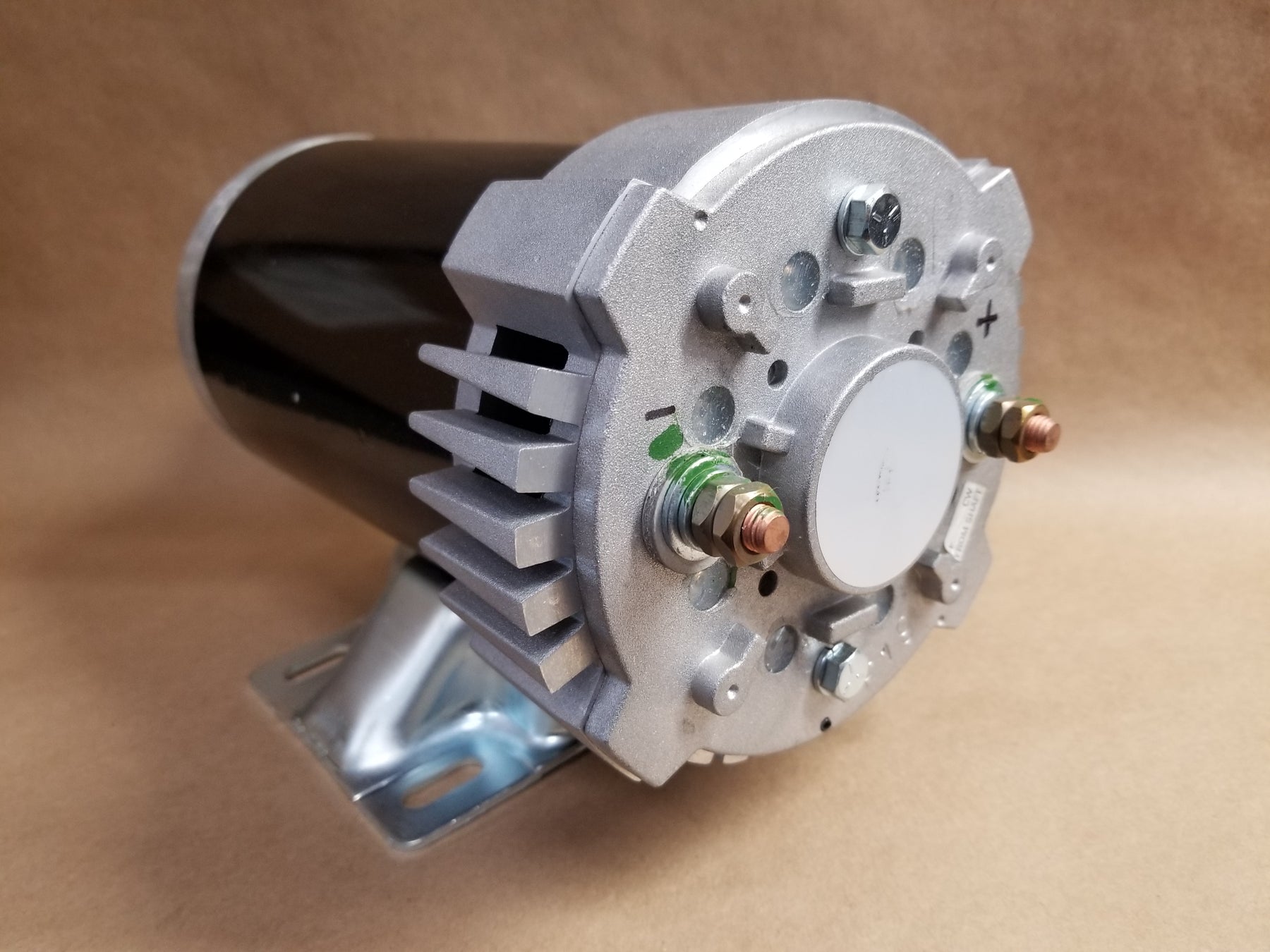

  • Rotation CWDE (clockwise when viewing drive end) with polarity as indicated in the photo.

*All electric Motor must be loaded properly to maximize efficiency and prevent overheating.
